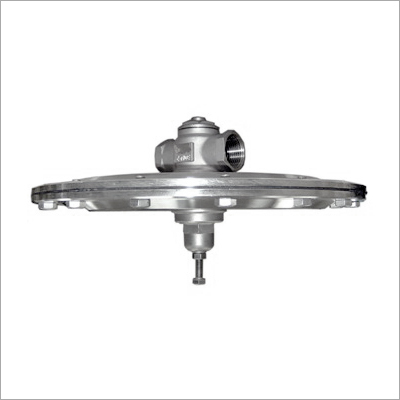

Pressure Reducing Pilot Valve

Pressure Reducing Pilot Valve

Product Details:

X

Price And Quantity

  • 2 Piece
  • USD ($)/Piece

Trade Information

  • 5000 Piece Per Month
  • 1 Months

Product Description

Pressure Reducing Pilot Valve

Offering Pressure Reducing Pilot Valve for steam & air, we are offering variant models, including pilot operated models, models with integral separators, direct-acting models and and steam traps....


Pressure Reducing Valve

Welcome to ELITE LINE INDUSTRIAL CORP, world's leading Pressure Reducing Pilot Valve manufacturer & Supplier company

| No leakage | Corrosion Resistant Finish | Space-Saving Design | Smooth Functioning | Long life |

Pressure reducing valve is helpful in preventing pipeline breakage due to high pressure. Pressure reducing valve is fitted in water supply pipeline as well as maintains setting outlet pressure in the main valve, regardless of different inlet pressure. The Pressure Reducing Valve find application in water supply, fire control and air conditioning systems to maintain setting outlet pressure. Pressure Reducing Valve use sub-valve (pressure reducing pilot valve) for controlling the main valve. When outlet pressure reaches set range of pressure reducing pilot valve, the pilot valve automatically senses the outlet pressure and helps in adjusting the pressure of back pressure chamber in the main valve. It enables the user to open the valve gate and consequently maintains the outlet pressure.

  • Pressure Adjusting Range : 1 ~ 7 kgf/cm2
  • (1 kgf/cm2 = 14.2 psi) 4 ~ 12 kgf/cm2

Pressure reducing valve can help reduce your water bill, save water & safe your plumbing and appliances.


Products Features:

  • Helpful In Preventing Pipeline Breakage
  • Fitted In Water Supply Pipeline
  • Helps In Adjusting The Pressure Of Back Pressure
  • Easy Installation
  • Withstand High Pressure
  • Accurate Dimension
  • Abrasion Resistance
  • High Strength
  • Sturdy Construction
  • Excellent Surface Finish
  • Easy To Fix
  • Rugged Construction
  • Corrosion Resistance
  • Durable Finish Standards
  • Enables The User To Open The Valve Gate And Consequently Maintains The Outlet Pressure.

Product Options

  • Pressure Reducing Valve are Available in different Models for Air, Gas & Chemical
  • LP - Low Pressure Range 10 - 35 PSI
  • HP - High Pressure Range Max Inlet 40 Kg/cm2; Outlet 20 - 35 Kg/cm2

Media Where To Use !!!

    Air, Water, Oil Gas, Steam & Oxygen, Nitrogen, CNG, LPG, Chemical.

Special order can be arranged for higher pressure adjustment range.

  • Pressure meter on the pilot valve displays outlet pressure. When the outlet opens, value of the pressure meter lowers down.
  • When the outlet is being used for large flow and the gate is generating quick-close motion, the pilot valve responds slowly to main valve to close the gate. In this situation, the outlet pressure gets increased by a little hence demanding the need of a tiny pressure reducing valve.

Pressure Reducing Valve Technical Specifications:

(Thread end)

Item No.

Size

L (mm)

A (mm)

Weight (kg.)

CV

BTR-40

1.5''

120

170

3

48

BTR-50

2''

200

190

9

75


(Flange end)

Item No.

Size

L (mm)

A (mm)

Weight (kg)

CV

BFR-50

2''

190

180

12

75

BFR-65

2.5''

210

185

14

105

BFR-80

3''

225

200

19

140

BFR-100

4''

250

222

26

260

BFR-125

5''

280

235

37

390

BFR-150

6''

310

260

50

550

BFR-200

8''

420

300

94

1000

BFR-250

10''

470

335

152

1600

BFR-300

12''

530

370

202

2200

BFR-350

14''

600

415

285

3000
